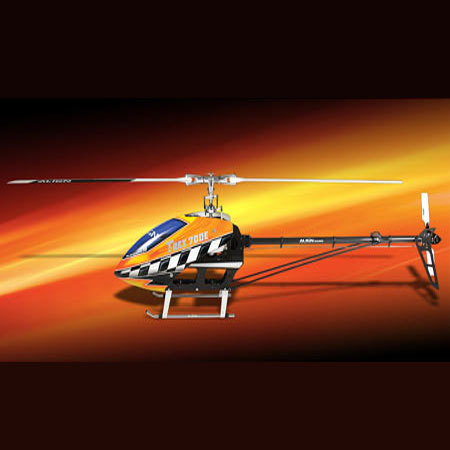

[AGNKX018E02] T-REX 700E 3G Combo - MAP PRICE
|
Price: $1,299.99
You Save: $100.00
Out Of Stock - This item is Backordered. You'll receive an email with the ETA.
Item Number: AGNKX018E02
Manufacturer: Align Corporation Limited
Manufacturer Part No: AKX018E02
|
"Due Mid June 2010"
All metal, highly precise main blade control system, with excellent durability and superior control precision
Design concept based on large competition helicopters, for excellent static and dynamic performance
New lateral adjustable metal left/right control bellcrank arms and elevator control arms, enabling the most ideal endpoint travel adjustment for 3G flybarless as well as flybar system, while increasing servo resolution for improved control precision
Innovative sliding battery tray rails embedded into the 3K side frames, allowing for quick battery access as well as battery protection. In addition, the system improves the overall rigidity of side frames, at the same time raising the center of gravity.
Top mounted motor base bringing the center of gravity higher, improving 3D agility and allowing blade drafts to cool the motor effectively
Uniquely designed fixed motor mount with 3 bearing support blocks, providing absolute support for the motor shaft, dramatically reducing gear mesh variance as result of instantaneous torque. In addition, this system strengthens the lack of support on high power outrunner motors, eliminating gear stripping issues, while increasing motor power transfer efficiency and main gear longevity
Easy access top mounted ESC platform to take advantage of main blades' airflow for effective cooling
High grade painted fiberglass canopy with 4 point anti-vibration mounting mechanism to simplify installation
Wide +/- 15 degree pitch range for superior 3D performance and explosive power
CNC twice-machined gear for superior balance and stability
High speed rated thrust bearings incorporated into tail blade grips
Utilizes high efficiency tail drive shaft system and high strength 3K carbon fiber tail boom
Highly rigid 3K carbon fiber side frames
High torque rated one way bearing base
All the features of the 3G Programmable Flybarless System
Included with kit:
● Aluminum Tail Boom X1
● 3K Carbon Fiber Tail Boom X1
● 690D Carbon fiber blades X1
● DS610 Digital servo X3 set
● DS650 Digital servo X1
● Flybarless System X1 set
● 700M Brushless Motor X1
● 105mm 3K Carbon Fiber Tail Blades X1 Set
Main Rotor Diameter: 61.5 in (1562mm)
Tail Rotor Diameter: 11.1 in (281mm)
Gross Weight: Approximate Flying Weight: 10.4 lb (4700g)
Length: 52.3 in (1328mm)
Main Gear Ratio: 1:9.58
Kit/ARF/RTF: Kit
Rotor Blade Length: 27.2 in (690mm)
|
|
| | |
