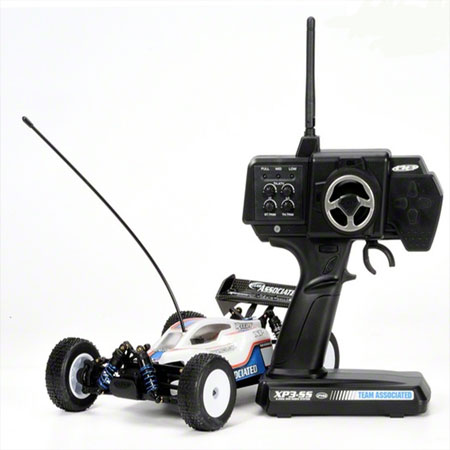

[ASC20108] RC18B2 Brushless 2.4GHz RTR

  This is the radio controlled, electric powered, 1/18 scale, ready to run
                    RC18B2 Off Road Buggy from Associated.

FEATURES: Chassis: Molded composite
          Drive: Four wheel, two belt sealed drivetrain handles most brushless/
            LiPo combos
          Shocks: Oil-filled composite bodies with adjustable pre-load
          Radio: 3-channel Associated XP3-SS 2.4GHz with steering and throttle
            trims and throttle ATV, mini steering servo
          Motor: Reedy 5000kV brushless
          Electronic Speed Control: XPS micro with reverse, switchable to
            forward only for racing
          Battery: 6-Cell 1100mAh NiMH
          Battery Charger: 110V AC wall type mode
          Ball Bearings: Complete set, 15 total
          Differentials: Planetary gear
          Body: 0.03" (0.8mm) painted and trimmed with rear wing
          Pinion Gear: 12 tooth steel
          Spur Gear: 60 tooth nylon
          Steering: Dual bellcrank with newly designed servo saver for optimal
            straight line tracking
          Battery Strap: Nylon, hinged for quick battery changes
          Wheels: Dish racing type, white in color
            Front 0.87" (22.2mm) wide, 1.3" (33.5mm) diameter
            Rear 1.1" (28.1mm) wide, 1.3" (33.5mm) diameter
          Tires: Mini pin Front, 2.2" (56mm) diameter, 0.94" (24mm) wide
                          Rear, 2.2" (56mm) diameter, 1.1" (29mm) wide
          Caster: Non-adjustable, caster/toe-in refers to the angle of the
            front suspension when viewed from the side of the car in relation
            to the chassis
          Camber: Non-adjustable, camber refers to the angle of the
            tops of the tires from vertical when when viewed from front or
            behind vehicle

INCLUDES: RTR RC18B2 Off Road Buggy from Associated, 2.4GHz radio, ESC, painted
            body, NiMH battery, adjustable slipper clutch, charger and
            instruction manual

REQUIRES: Transmitter Batteries: 8 AA
          Building and track equipment

SPECS:      Vehicle-
          Length: 9.9" (252mm)
          Width: 7.2" (182mm)
          Track: 7.2" (182mm)
          Wheelbase: 6.5" (165mm)
          Weight: 17.6oz (500g)
          Gear Ratio: 2.0:1
            Body-
          Length: 6.7" (170mm)
          Width:  3.4" (86mm)
          Height: 2"   (51mm)

COMMENTS: For replacement bearings use;
            Qty.        Size           Location       Qty.    Order
             2        8x12x3.5mm     Fr & R Diffs      1     ASCC0106
             1        4x8x3mm        Spur Gear         1     DTXC1511
             2        4x8x3mm        Caster Blocks     1     DTXC1511
             2        8x12mm         Caster Blocks     1     DTXC1581
             2        4x8x3mm        Rear Hubs         1     DTXC1511
             2        8x12mm         Rear Hubs         1     DTXC1581
             1        3x6mm          Gearbox           1     DTXC1503
