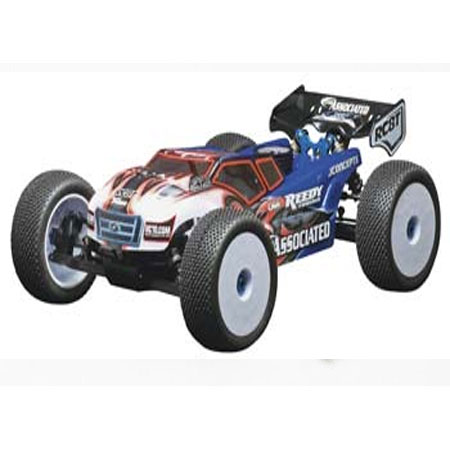

[ASC80912] Associated 1/8 RC8T FT Truggy Championship Edition Kit

             This is the 1/8 scale radio controlled, glow powered,
          Championship Edition Associated Factory Team RC8T Truggy Kit.
                    For modelers 14 years of age and older.

   This Championship Edition version includes option parts that Ryan Maifield
       used to win the 2009 ROAR 1/8 Scale Truck National Championships.

FEATURES: Chassis: 0.12" (3mm) thick machined 7075 hard coated aluminum
            construction with molded composite front and rear chassis braces
            with integrated center stiffener that maintains chassis integrity
            and 0.12" (3mm) 7075 blue aluminum one-piece top plate
          Drive: Four wheel shaft, 3.5mm light CVA drivetrain with full ball
            bearings, rear molded CVA boots to keep dirt out of rear joints
          Radio Tray: Molded composite with forward placement battery box for
            increased corner speed
          Ball Bearings: Full set, rubber sealed
          Differentials: Pre-assembled two-piece split-center mount for
             easy access to center diff, steel planetary gears
          Shocks: Factory Team Big Bore oil filled, hard coated aluminum
            bodied with 4mm TiN stainless steel shock shafts
          Shock Towers: 7075 blue aluminum 0.20" (5mm) thick with additional
            rear camber link options
          Spur Gear: 54 tooth
          Brake: FFC Free Float Caliper system eliminates unwanted brake drag
            during throttle, heatsink brake discs
          Body: Clear untrimmed, JConcepts Punisher with black Illuzion wing
            predrilled for the RC8T, JCOC1019
          Tires: JConcepts Cross Hairs 3025 Half Ups with yellow foam inserts
            outer diameter: 5.7" (144mm), width: 2.4" (61.25mm)
          Wheels: LPR (Low Profile Race) white in color, diameter: 3.7" (94mm)
            width: 2.25" (57mm), hex size: 17mm
          Wheel Hexes: Blue aluminum with captured drive pins and nyloc wheel
            nuts
          Clutch: Three shoe aluminum, high torque, 1.0mm and 1.1mm
            diameter clutch springs
          Clutch Bell: 14 tooth steel
          Fuel Tank: Anti foaming, easily removed with two clips
          Caster: Adjustable, caster/toe-in refers to the angle of the front
            suspension when viewed from the side of the car in relation to
            the chassis
          Camber: Adjustable front and rear, camber refers to the angle of the
            tops of the tires from vertical when viewed from front or behind
            vehicle, revised front upper camber link assembly for easier
            adjustments
          Suspension: Fully adjustable, full CVAs with captured CVA pins and
            Factory Team blue titanium turnbuckles
          Suspension Mounts: 7075 blue aluminum that key into chassis for
            maximum durability
          Steering: Bell crank with servo saver and updated geometry for more
            consistency and reduced bump steer

INCLUDES: Associated Competition Edition RC8T Truggy Kit, 54 tooth spur gear,
            14 tooth steel clutch bell, oil filled shocks, wheels, illustrated
            instruction manual, bottle of 35 weight shock oil, body and decals

REQUIRES: Radio: 2-Channel with standard servo for throttle and high torque
            servo for steering
          Receiver Battery: 4.8 - 6.0V 5-cell flat or hump pack
          AA Batteries: Eight for transmitter
          Engine: .28 cu in rear-exhaust, slide valve carb
          Glow Starter: 1.2 volt
          Paint: Lexan specific spray or brush-on
          Misc. Items: Fuel bottle, building and track equipment
          Fuel: 2-cycle glow fuel with 10%-15% nitromethane
            Most of the fuels we carry meet or exceed the lubricant content
            required for optimum performance and maximum engine life.  In the
            past, the conventional lubricant content used in fuel was 18%.  But
            with new advanced technologies, fuels like Red Alert and O'Donnell
            for example, have a better quality of lubricants even though the
            percentages of lubricant content are lower.  These high-tech
            lubricants provide exceptional cooling and protection.

SPECS:    Length: 22" (555mm)
          Width:  16.1" (410mm)
          Track: 13.6" (346mm) outer edges of tires, side-to-side
          Weight: 9.3lb (4230g) without electronics, engine, exhaust or tires
          Wheelbase: 14.8" (375mm)
          Gear Ratio: 4.30:1
            Body-
          Length:  18"   (457mm)
          Width:    8.5" (216mm)
          Height:   4.6" (117mm)
