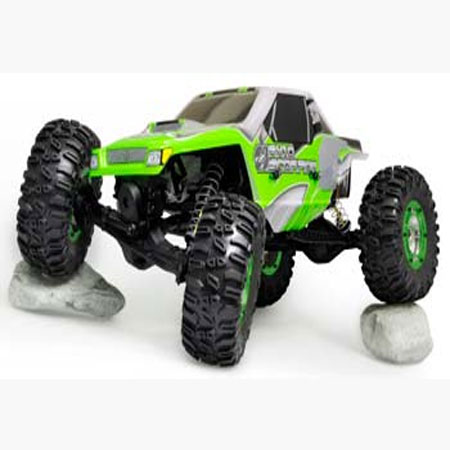

[AXI90011] AX10 Scorpion Rock Crawler RTC 2.4GHz

   This is the 1/10 scale electric powered, 2.4GHz radio controlled,
                 Ready to Crawl Axial Scorpion Rock Crawler.

FEATURES: Chassis: Twin 0.10" (2.5mm) aluminum side plates with aluminum posts
            and molded nylon transmission/skid plate with radius edges to
            prevent hangups
          Drive: Full-time locked four wheel drive, composite drive shaft with
            hardened metal yokes
          Motor: 55 turn
          Radio: AX-2 2.4GHz 2-channel pistol grip with steering and throttle
            trim and reverse
          Servo: High torque metal gear steering servo
          ESC: Axial AE-1 with reverse, AXIM4250
          Ball Bearings: Full set included
          Shocks: 72-103mm length, 3.5mm titanium nitride coated shafts, oil
            filled with silicone diaphragms and bushings
          Gearbox: Sealed front and rear
          Differentials: Locked style (spool), high tolerance sintered locker
          Transmission: Designed to place weight of motor as low as possible
            while still allowing a wide range of gearing choices, transmission
            is locked with no differential action and hard anodized aluminum
            outdrive shafts, adjustable slipper clutch
          Tires: 2.2" (56mm) wide Pro-Line M2 Hammer 4.75" (120.65mm) diameter
            with memory foams
          Wheels: 2.2" (56mm) wide eight hole beadlocks, 2.51" (64mm) diameter,
            satin finish with green rock rings
          Suspension: Three link, all links constructed of lightweight
            and strong composite plastic
          Body: .040" (1.02mm) thick polycarbonate body, trimmed and painted
            with decals applied
          Solid axles that feature improved driveshaft angle, castor and class
            leading steering throw

INCLUDES: RTC Axial Scorpion Rock Crawler, tires, foam inserts, wheels, ESC,
            2.4GHz 2-ch radio, 55 turn motor, trimmed and painted body,
            body, 14 tooth pinion gear, 87 tooth spur gear, instruction manual
            and shocks

REQUIRES: Radio Batteries: (8) AA size
          Battery: 7.2V 6-cell stick pack with standard connector
          Charger: AC/DC timed or peak for 6-cell battery
          Misc. Items: Building and track equipment

SPECS:      VEHICLE-
          Length:     17.25"  (438mm)
          Width:      10"     (254mm)
          Height:      6.125" (156mm)
          Weight:      3.5 lbs (1588g) approx.
          Wheelbase:  12.4 - 13.1" (316 - 332mm)
          Ground Clearance: 2.7" (68mm)
          Articulation: 70°
          Gear Ratio: Adjustable from 15:1 - 74:1 with different pinion and
            spur gear choices
          Tires: 2.2" x 4.75" (56 x 120.65mm)
            BODY-
          Length:     17.25"  (483mm)
          Width:       7.125" (181mm)
          Height:      5.25"  (131mm)

          For Replacement Ball Bearings use:
            Qty. Size       Location          Qty.   Bearing Set
             4    10x15      Gearbox           2      DTXC1595
             8    5x11       Gearbox           4      DTXC1547
             4    5x10       Gearbox           2      DTXC1535
             2    8x16       Gearbox           1      DTXC1585
             4    5x11       Axle              2      DTXC1547
