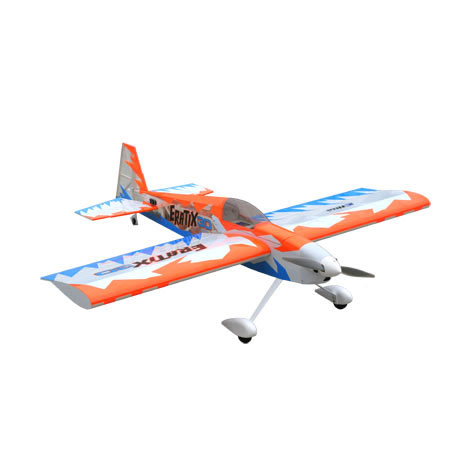

[EFL4075] Eratix 3D 25e ARF

<< Previous in Electric Airplanes

Next in Electric Airplanes >>

View Larger Image

Price: $169.99

You Save: $10.00

Out Of Stock - This item is Backordered. Send us an email to get one ordered.

Item Number: EFL4075

Manufacturer Part No: EFL4075

Add to a new shopping list

Email this page to a friend

A truly extreme 3D-capable sport model, the Eratix™ is a great stepping stone for sport modelers who are on their way to flying a more challenging 3D aircraft, such as a Funtana®. This is the ultimate 3D trainer!

Capable of sport-to-extreme 3D aerobatics
Generous wing area and light wing loading for superb slow flight response
Specially designed, machined, 3D control horns
Lightweight, open-structure airframe design
Top quality, laser-cut balsa and lightweight plywood materials
Firewall accepts E-flite® Power 25 or Power 32 brushless motors without modification
Tough, lightweight aluminum landing gear with factory-painted fiberglass wheel pants
Factory-painted fiberglass cowl
Easy-access magnetic battery hatch
Ground clearance optimized for a wide range of prop sizes
Steerable tail wheel

The E-flite® Eratix™ 3D 25e ARF is a 3D-capable sport plane designed to make the transition from sport models to more challenging 3D aircraft a lot less demanding. Its large wing area and light wing loading offer very forgiving flight characteristics, especially in slow flight. It’s also compatible with a range of motor and propeller sizes so you can fine tune the power and performance to your skill level. Both the E-flite Power 25 and Power 32 brushless outrunner motors bolt to the firewall without any modifications. Experienced 3D pilots will appreciate the uniquely designed, machined aluminum 3D control arms that can handle the rigors of high-torque mini servos and large control throws. Sport aerobatics or stick-bending 3D, the Eratix 3D 25e is up for whatever you are.

You will need...

In order to get your Eratix 3D 25e ARF airborne, you will need the following items:

Radio System: 6+ channels
Servo: 4 mini metal gear servos
Motor: Power 25 or Power 32 motor
Speed Control: 60-amp ESC
Prop: 13 x 6.5E, 14 x 7E or 15 x 8E, depending upon the motor selected
Battery: 3S 11.1V 4200mAh or 4S 14.8V 3850mAh Li-Po

Wingspan: 54 in (1370mm)
Overall Length: 53 in (1350mm)
Wing Area: 695 sq in (44.9 sq dm)
Flying Weight: 3.75–4 lb (1.7–1.8 kg)
Motor Size: Power 25 or 32 required
Radio: 6+ channels
Servos: 4 metal-gear minis
Trim Scheme Colors: UltraCote Lite White (HANU973), Safety Orange (HANU892), Fluorescent Blue (HANU896), and Clear (HANU964)
CG (center of gravity): 3.75–4 in (80–100mm) from leading edge
Prop Size: 13 x 6.5E, 14 x 7E, or 15 x 8E depending upon which recommended setup you choose
Spinner Size: 2.5"
Hardware Included: Yes
Speed Control : 60A ESC (EFLA1060)
Recommended Battery: 3S 11.1V 4200mAh or 4S 14.8V 3850mAh Li-Po (THP42003S2PPL or THP38504SX)
Control Throw (Ailerons): High Rate: 3 in (75mm) up and down; Low Rate: 1 in (25mm) up and down
Control Throw (Elevator): High Rate: 3.5 in (90mm) up and down; Low Rate: 1 in (25mm) up and down
Control Throw (Rudder): High Rate: 4.5 in (115mm) left and right; Low Rate: 2 in (50mm) left and right
