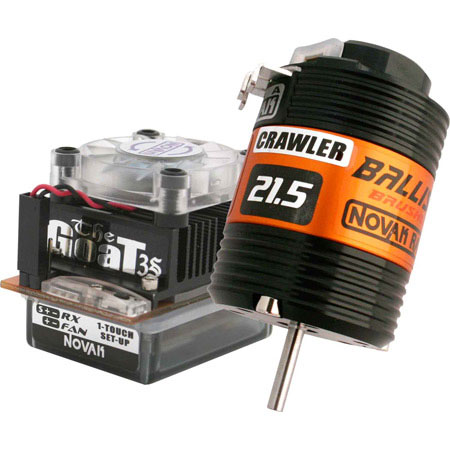

[NOV3029] Goat 3S Crawler Brushless System 21.5

<< Previous in Combo Kits Next in Combo Kits >>
Price: Can ship in 5 days
Out Of Stock - This item is Backordered. Send us an email to get one ordered.
Item Number: NOV3029
Manufacturer: Novak
Manufacturer Part No: 3029
  • User-friendly interface with six adjustable parameters: Drag Brake (10 settings), Dead Band (5 settings), Minimum Drive (5 settings), Drive Frequency in brush mode (7 settings), Li-Po Cutoff and Reverse Motor Rotation
  • Water-resistant case with gasket seal
  • Sensor-based for excellent braking and low-speed driveability
  • Four status LEDs for easy programming and troubleshooting
  • Auto Detect Brushed Motor Mode, Locked Rotor Detection, and Thermal Overload Protection
  • Oversized front motor bearing [1/2 x 3/16 in (12.7 x 4.8mm)] for increased load handling and bearing life
  • Completely rebuildable motor design
  • Nickel-plated sintered Neodymium rotor with 0.125-inch pinion shaft that accepts all existing pinion gears

    Novak’s next-generation Ballistic motors have now entered the crawling field. The high-performance Ballistic Crawler Brushless Motors coupled with Novak’s impressive Goat 3S Crawler Brushless/Brush ESC are expected to be some of the most sought after brushless crawling systems on the market. Because of their extreme versatility, the Goat 3S Crawler Brushless Systems can tackle all crawling conditions with a simple stator switch. Because the crawler-specific hardware is located outside of the hand-wound stators, drivers can replace the stators at any time to properly combat any type of terrain or course. The Goat 3S Systems also have the ability to run on either two- or three-cell Li-Po batteries via Novak’s auto-detect software. Additionally, one of the three profiles is specific for worm-drive vehicles, which do not require electronic drag brakes.

    HIGH-LEVEL SPEED CONTROL
    The Goat 3S’s completely programmable interface is preset to excel in any crawler rig, whether it be worm-drive or standard vehicles. Simply install it, push the One-Touch button and the Goat 3S will easily maneuver through any terrain. The powerful speed control also comes equipped with instant reverse via Novak’s Zero Reverse Delay, which provides immediate power delivery in both forward and reverse directions. Additionally, the Goat 3S’s third profile features a fully programmable brushed motor option to allow for motor experimentation. But the versatility doesn’t end there. Attach a non-crawling Ballistic motor and the Goat 3S will operate the same as Novak’s speedy Havoc 3S with forward, brake and reverse settings. The Goat 3S also includes everything necessary to operate, including a cooling fan for additional airflow and an external high-voltage three-amp switching regulator to provide six volts of output without overheating the speed control.

    HIGH-END CRAWLER MOTOR
    Like all Novak Ballistic motors, the Ballistic Crawlers contain an easy-to-adjust timing assembly, heavy-duty solder tabs and a removable nine-inch shielded sensor harness. And by taking advantage of the Ballistics’ interchangeable wound stator construction, crawlers can simply replace the installed 18.5- or 21.5-turn stator for any available stator between 13.5 and 21.5 turns. The motors are also equipped with a custom-silicone gasket seal to keep dirt and debris from damaging the motors’ sensor plug. The Ballistic Crawler motors also include a sintered rotor. The rotor’s large diameter and exclusive magnetic material provide the motors with more torque and stronger braking. It also increases natural drag braking and improves the motors’ initial throttle response, providing more control on steep climbs and downhill descents.

    Type: Brushless
    Wire Gauge: 14 AWG
    # of Turns/Windings: 21.5
    Voltage: 2–3S Li-Po cells, 4–9 Ni-MH cells (1.2V/cell)
    RPM/Volt (Kv): 1800Kv
    Resistance (Ri): 0.7 mΩ
