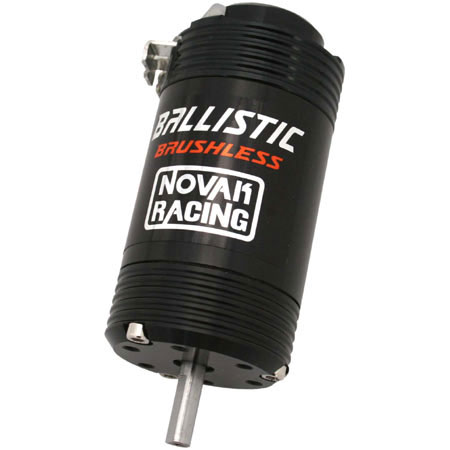

[NOV3505] Ballistic 550 Brushless Motor 5.5T/3700Kv (3S max)

<< Previous in Brushless Motors Next in Brushless Motors >>
Price: $117.89
Out Of Stock - This item is Backordered. Send us an email to get one ordered.
Item Number: NOV3505
Manufacturer: Novak
Manufacturer Part No: 3505
  • Sensor-based for excellent torque and low-speed driveability
  • Oversized front bearing for increased load handling and bearing life
  • Rebuildable design with removable shielded sensor harness, sensor assembly, wound stator, hardware, insulation, bearing cap, bearings and both end bells
  • Nickel-plated, sintered Neodymium rotor with a 5mm pinion shaft that accepts all existing pinion gears
  • Adjustable timing to help retain previous user settings


    The Ballistic 550 Brushless Motors are the first 550-sized motors to break into short course competition and easily outperform traditional 540-sized motors. The Ballistic 550s are so powerful because of their extra long stator and rotor magnet. In fact, the stator and rotor magnet are twice the length of 540-sized motors, giving them twice the torque of an equivalent 540 motor. Additionally, these larger-sized motors run cooler and more efficiently than their 540 counterparts. These high-powered machines are the motors of choice at small, indoor race tracks and easily install into OFNA’s Hyper 10 SC Pro 4x4 Kit, OFNA’s Jammin’ SCRT 10 4X4 Kit, Traxxas’ Slash 4X4 4WD Short Course Trucks, and many other 1/10-scale short course trucks.

    In addition to its already impressive features, including low-speed driveability and no cogging, the Ballistic 550s have also been fitted with rugged 5mm output shafts for maximum resilience and race life. Additionally, the motors are sensor-based for a smooth and controlled power delivery. These motors are completely rebuildable and feature interchangeable wound stator construction. A simple stator swap allows for easier experimentation at the track and cuts down on racing costs.

    Type: Brushless
    Size: 550
    Bearings or Bushings: Bearings
    # of Turns/Windings: 5.5T
    Timing: User-adjustable
    Voltage: 2S-3S LiPo (7.4-11.1V)
    RPM/Volt (Kv): 3,700 RPM/Volt
    Weight: 10.1 oz (286g)
    Overall Diameter: 1.41 in (35.8mm)
    Shaft Diameter: 5mm
    Overall Length: 2.84 in (72.1mm)
