[PTK106B+] PROTEK R/C ICHARGER 106b+ DC BATTERY CHARGER
|
Out Of Stock - This item is Backordered. Send us an email to get one ordered.
Item Number: PTK106B+
Manufacturer: Protek
Manufacturer Part No: 106B+
|

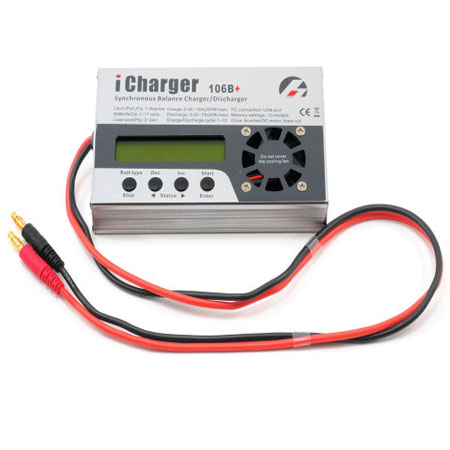

This is a ProTek R/C iCharger 106B+ DC Battery Charger.This charger allows you to charge and balance 2S to 6S lithium batteries. The charger comes with XH style balance connectors on the side of the charger that fit Align, E-Flite and ProTek R/C battery packs. Adapter boards for other batteries are also available.
Specifications:
Input Voltage Range: 10.0 – 18.0VDC
Charge Current Range: 0.05 – 10.0A
Discharge Current Range: 0.05 – 7.0A
Maximum Charge Power Capacity: 250W @ input voltage > 13.5V
Maximum Discharge Power Capacity: 20W
Maximum External Discharge Power Capacity: 170W @ 25V/7A
Current Drain For Balancing: <300mA
Balance Accuracy: <10mV Lithium (LiPo/LiIo/LiFe)
Battery Cell Count: 1 – 6 series (In non-balance mode, expand LiFe to 8s)
NiCd/NiMH Battery Cell Count: 1 – 17 series
Pb Battery Cell Count: 1 – 12 series (2 – 24V)
Battery Setup Memories: 10
Intelligent Temperature Control: Yes
PC Connect: USB port
Weight: 350g
Dimensions (L X W X D): 134X83X25mm 5.28X3.27X0.98" |
|
| | |
