[SUPG0235] G-90 Ringed w/Muffler

TECH NOTES

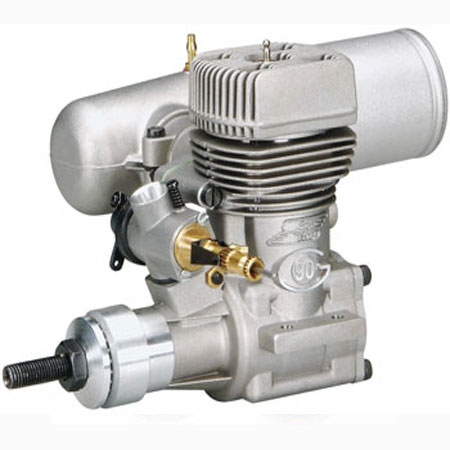

   This is a SuperTigre G90, the updated version of the S90K. The main
differences between the two engines are that the G90 is a one-piece crankcase
(S90K was a two-piece), and the G90's muffler is a bolt-through-the-crankcase
(S90K muffler bolted onto the crankcase).

FEATURES: Ringed piston
          Schnuerle scavenged
          Dual ball bearing-supported crankshaft
          Unique bolt-through muffler uses muffler bolts, lock washers,
            and nuts to secure muffler to engine (no more stripped threads
            on the crankcase or muffler).
          Steel cylinder liner
          3-YEAR warranty

INCLUDES: One Assembled engine w/glow plug (SUPG1200)
          One Muffler, Muffler Gasket, Exhaust Stack, Pressure Fitting, and
            Hardware Bag w/Bolts, Washers, Nuts, and Carb Retainer.
          One Carburettor
          One Set of Instructions, Parts Diagram, SuperTigre decals

SPECS:    Bore:               1.083" (27.5mm)
          Stroke:              .976" (24.8mm)
          Weight w/o muffler:  589g (20.66oz)
          Weight with muffler: 765g (27oz)
          Displacement:       .90 cu in (14.73cc)
          Output:             2.5 bhp at 14,800 rpm
          RPM Range:          2,500-16,000
          Width between centers of mounting holes:         50mm (1.97")
          Length between center of mounting holes:         20mm  (.79")
          Width of crankcase excluding mounting flanges:   42mm (1.65")
          Length from backplate to front of drive washer:  97mm (3.82")
          Height from bottom of crankcase to top of head: 108mm (4.24")
          Crankshaft size: 5/16-24
          Suggested prop size: 12x8, 13x6
          Carb Settings: H-2-turns out from closed position.
                         L- Take carb off, rotate and look at bottom side.
                            Turn trottle until wide open, set tip of low end
                            needle half-way across cat eye.

COMMENTS: Since this engine uses the exhaust stack from the S-90K, some after-
            market mufflers will fit this engine (using the muffler screws from
            the G90) and some will not. Check the optionals in the Accessory
            Completion Guide for after-market exhaust systems that will work.
