[SUPM1030] 30 Amp Brushless ESC 5V/2A BEC

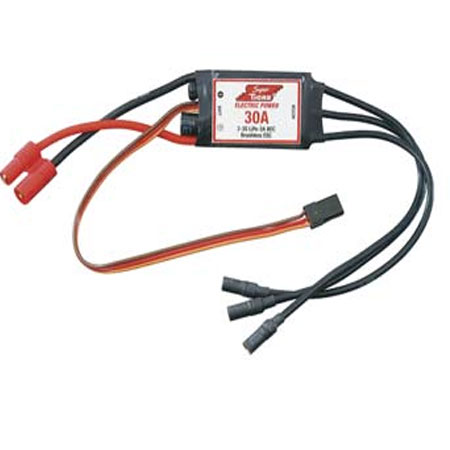

 This is the 30 Amp Brushless Electronic Speed Control from SuperTigre.
             For medium sized indoor or park flyer type airplanes.

FEATURES: LiPo, NiCD and NiMH compatible-detects battery chemistry at
            installation and automatically sets low-voltage cutoff
          Safe Sart software and solid-state thermal overload circuitry
          8.5kHz switching for cooler operation and longer flight times
          Audible sound cues simplify setup and setting confirmation
          Universal radio connector compatible with all Futaba, JR, Hitec,
            Spektrum and Airtronics Z
          All connectors including gold plated 3.5mm bullet motor connectors
            and polarized gold plated ST battery plugs
          16 gauge battery and motor leads
          180 day limited warranty

INCLUDES: SuperTigre 30 Amp Brushless ESC with all connectors and instructions

REQUIRES: Installing in model and connecting to battery (see COMMENTS), motor
            and receiver

SPECS:    Input (cells): 6-12 NiCd/NiMH or 2-3 LiPo (20V max. w/o BEC)
          Output: 30A cont. (34A surge)
          BEC: 5V/2A
          Power (Max.): 300W
          Frequency: 8.5kHz
          On-resistance: 0.015 ohms
          Timing: 12°
          Brake: on/off
          Low-Voltage Cutoff: batt. voltage x 0.67
          Thermal Cutoff: 230°F (110°C)
          Dimensions: 2.0 x 1.0 x 0.3" (51 x 26 x 7mm)
          Weight: 1.2oz (35g)

COMMENTS: SuperTigre ESCs have a unique "ST" type polarized battery connector
            that is custom matched to SuperTigre LiPo batteries. To adapt this
            ESC to batteries with different types of connectors the following
            adapters are available;
            SUPM0010  Adapter ST LIPO/DEANS U FEMALE
            SUPM0020  Adapter ST LIPO/DEANS MICRO
            SUPM0030  Adapter ST LIPO/STD MALE
            SUPM0040  Adapter DEANS U MALE/ST ESC
            SUPM0050  Adapter DEANS MICRO/ST ESC
            SUPM0060  Adapter STD FEMALE/ST ESC
            SUPM0070  CHARGE LEAD BANANA/ST LIPO
